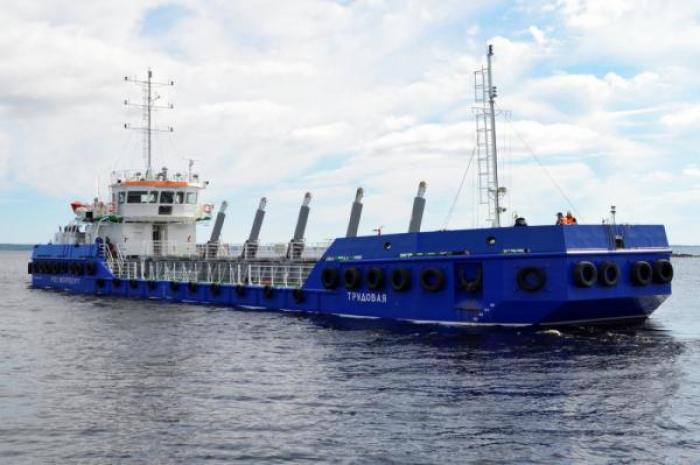

The ground-lifting scow "Trudovaya" of the HB600 project

  • The ground-lifting scow
  • The ground-lifting scow
  • The ground-lifting scow
  • The ground-lifting scow
  • The ground-lifting scow
  • The ground-lifting scow
Submit request

For cooperation in the field of shipbuilding, please call +7 (8142) 33-03-21.
Twin-screw ground-lifting scow "Labor", with a cargo hold in the middle part of the hull. Vessel class KM Ice1 R3-RSN AUT3 Hopper.

GS «Labor» — head in a series of 4 vessels of this project, ordered by FSUE «Rosmorport ». The vessels are designed to work as part of dredgers to transport the soil extracted by dredgers to the places of unloading. Unloading is carried out through the bottom doors. The vessels of this project have a hull built on a modular principle, as well as a container-type main power plant (SEU).

Main technical characteristics of the vessel:

56.1 m
Overall length

11.2 m

2.92 m

600 m³
Volume of the ground hold

2x350 kW
Engine power

≈ 7,1 nodes
Travel speed

3 people

5 days
Stock autonomy

KM Ice1 R3-RSN AUT3 Hopper
Vessel class

The modular principle of building the hull of the vessel allows:

  • have a simplified shape of the hull contours (reducing construction costs);
  • to insert an additional compartment (hold) with a volume of up to 300 m3 (significant cost savings when making changes to the project).

The propulsive complex of scows consists of 2 container-type diesel units installed on the deck in the aft part of the vessel and working on lifting (collapsing) screw-steering columns with fixed-pitch screws. This arrangement allows you to reduce costs during the operation of the GEU, repair (replacement) of mechanisms, as well as to inspect and repair the SRC without putting the vessel into dock.
